E-Bike Wiring Diagrams: Trace a Fault Before Replacing a Component
Trace an e-bike wiring fault from the documented source to the affected load, then use model-specific results to choose repair, replacement, or service.
Start with the exact e-bike wiring diagram for your bike and system—not a generic online pinout. Photograph and label the installed harness, record when the fault occurs, isolate power as the model documentation directs, and trace from the documented source toward the affected load. Inspect first, test only named terminals under named conditions, and replace a part only when the first reliable mismatch supports it.
This source-to-load method helps with no-power, partial-function, and intermittent faults. It also keeps a display, throttle, motor, controller, harness, or connector symptom from becoming an automatic replacement verdict.
Set the First Test Point From the Exact E-Bike Wiring Diagram
First confirm the exact bike model, system version, and matching service documentation. Use the exact e-bike wiring diagram for that system to identify connector identity, the source-side starting point, power-isolation steps, and permitted meter conditions. Do not rely on wire color or a generic pinout alone; use the matching model or system documentation.
Follow this order:
- Verify the documentation. Match the model and system version to the diagram or service procedure. If the installed harness does not match, resolve that mismatch before probing.
- Create a baseline. Photograph the harness before disconnecting anything. Label both ends of each connector and note the source, branches, controller connection, and affected load.
- Record the symptom. Write down what works, what does not, when the fault began, the operating condition, and whether movement changes the behavior.
- Mark the first test point. Use the diagram to identify the source-side point and the model-directed power-isolation procedure. Have the documentation, symptom notes, and labeled photos ready before disconnecting or probing.
- Move toward the load. Inspect the route and connectors, then run only the permitted tests at the documented points.
- Record the first reliable mismatch. Carry that finding into the fault-classification step instead of naming a part from the symptom alone.
For a broader model-specific DIY repair workflow, keep the exact manual for your bike as the authority. A general repair guide cannot replace the model's diagram or test conditions.
Inspect the Harness Route and Connectors Before Meter Testing
Visual inspection can narrow the suspect location before you take a reading, but it cannot prove that the entire circuit or a component is good. Record the original condition before cleaning, reseating, or moving anything.
Check the Harness Route and Strain Points
Compare the installed route, branches, bends, housing entries, and moving-part clearances with the exact diagram. Prioritize places where the harness bends sharply, enters a housing, passes near moving parts, or shows signs of an earlier repair. An intermittent symptom that changes when the harness moves makes that documented area a useful inspection target, not proof of a failed component.
Look for pinched, stretched, rubbed, cut, heat-affected, or moisture-exposed insulation. Also check wire entry points and strain relief. Note the location and condition in your record before changing the route.
Check Connector Seating and Terminal Condition
A connector can be fully plugged in and still have a backed-out terminal, weak crimp, frayed wire, contamination, damaged seal, bent contact, or poor retention. Inspect the lock, terminal position, seal, and wire entry into the housing. Follow the model's instructions before reseating or cleaning.
If the connector or harness cannot be matched confidently to the exact diagram, resolve that documentation problem before meter testing. Our accessories collection is for navigation only; its listing does not establish fit for your bike or connector.
Run Only the Meter Tests Defined for the Suspect Circuit
Before taking a reading, confirm the meter mode, probe points, terminal identity, connector state, circuit state, and expected condition in the exact procedure for the suspect circuit.
Choose the Test Condition Before Probing
Before taking a reading, write down:
- The exact model and procedure being used
- The connector and terminal identity
- The meter mode
- The probe locations
- Whether the circuit is powered or isolated
- The model-defined expected condition
Use continuity or resistance only when the exact procedure permits it and the circuit is isolated as directed. Use voltage only at identified terminals and under the specified model conditions. Do not substitute a remembered voltage, generic pinout, or wire-color assumption for missing evidence. Do not bridge terminals, apply external power, alter protection circuits, or probe uncertain contacts.
Interpret the Result Without Overclaiming
Compare the observed result with the condition defined by the model procedure and record the first mismatch. Depending on that procedure, the result may narrow the issue to an open section, short, poor connection, missing supply, or downstream issue. It does not independently condemn a controller, display, throttle, motor, harness, or connector.
For a control-related symptom, use model-specific throttle test guidance only as follow-up navigation. The exact procedure for the installed system still controls the test and its interpretation.
Classify the Faulted Section Before Naming a Component
Use the first reliable mismatch in the documented source-to-load path to choose the next action. The matrix below is a decision aid; all terminal identities, readings, and test conditions remain model-specific.
| First reliable finding | What it supports | Next action |
|---|---|---|
| Visible damage, looseness, contamination, backed-out terminal, or disturbed routing at a documented location | A connector or harness section needs closer inspection | Follow the model's repair, cleaning, reseating, or section-replacement instructions. Treat the finding as a lead until the circuit result supports it. |
| The permitted test first fails along the source path | An open, poor connection, or missing supply in that section | Continue only with the next documented check. Repair or replace that confirmed section if the procedure supports it. |
| The upstream path passes, but a model-defined load-side or component test is abnormal | The downstream component remains under suspicion | Complete the relevant component procedure before ordering a replacement. |
| The branch, diagram, terminal, or result remains contradictory or unrepeatable | The fault is not safely isolated | Preserve the record and seek qualified or manufacturer-directed service. |
For no-power symptoms, follow the documented source path until supply disappears or the first connection fails. For partial function, follow the branch serving the affected function. For an intermittent fault, prioritize a repeatable finding at the documented bend, strain point, branch, or connector. Do not order a part until the relevant upstream path and component-specific conditions support the conclusion.
Stop at Battery-Protection or Uncertain-Test Boundaries
Stop tracing and seek qualified or manufacturer-directed service when the diagram does not match the bike, terminal identity is uncertain, the test condition is undocumented, safe isolation cannot be confirmed, wiring shows heat damage, battery-side wiring is damaged, or a short is uncontrolled.
Do not continue into battery-pack modification, battery-cell repair, protection-circuit work, terminal bridging, or improvised power. Preserve the labeled photos, symptom notes, and test record for the technician. The CPSC micromobility guidance advises using a replacement battery pack confirmed suitable by the device manufacturer and avoiding packs modified or reworked by unqualified personnel.
Match the Replacement to the Confirmed Fault and Exact System
Order a replacement only after the trace identifies the faulted section and the part matches the exact bike and wiring configuration. Check the model, system version, connector arrangement, voltage configuration, mounting details, and documented compatibility. Availability or a similar-looking connector does not prove fit.

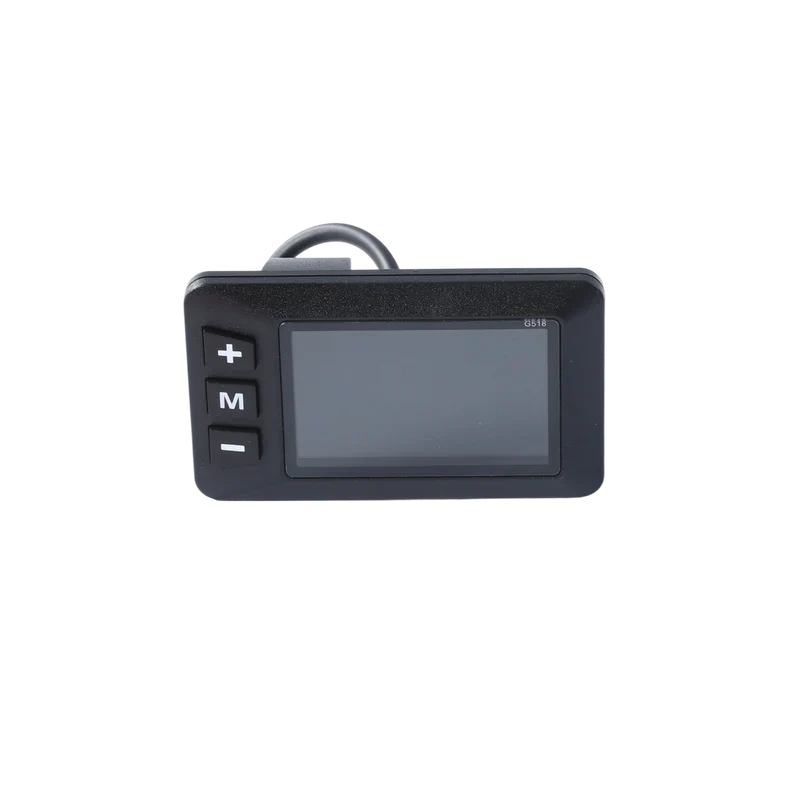

For example, our CEMOTO D-Series display fit details identify the D03 G518 display as compatible with CEMOTO D02 and D03 electric dirt bikes only, with 48V, 60V, and 72V versions available. It is not a universal fit and is not documented for non-CEMOTO bikes. Match the installed system and voltage configuration before considering that product.
If the fault remains unresolved, the configuration cannot be confirmed, or the trace reaches a battery-side boundary, choose qualified service instead of ordering a component at random.
FAQs
How Do I Trace an E-Bike Wiring Problem?
Use the exact diagram to mark the source-side point, label the harness, isolate power as directed, inspect the route and connectors, and run only permitted tests toward the affected load. The first reliable mismatch determines the next action. A wire color or generic pinout does not.
Which E-Bike Circuit Section Should I Test First?
Start at the source-side point identified by the exact diagram and affected branch, then check the first relevant connector or branch. If movement changes the fault, inspect the documented bend or connector first, but do not treat that clue as proof of a failed component.
Can a Wiring Fault Damage an E-Bike Controller?
A wiring fault can make the controller a suspect, but the symptom alone does not prove controller failure. Confirm the upstream path and complete the model-specific component procedure before replacing it. For related battery and controller decisions, see our battery and controller service guidance.
When Should I Stop E-Bike Wiring Fault Diagnosis?
Stop when the diagram or terminal identity does not match, the test condition is uncertain, wiring is heat-damaged, a short is uncontrolled, safe isolation is unavailable, or the trace reaches battery protection or the battery pack. Preserve your record and seek qualified service rather than bypassing protections or improvising a test.
