How do you verify controller compatibility when upgrading an electric dirt bike?
A practical guide to verifying controller compatibility before upgrading an electric dirt bike. It covers voltage, current, motor pairing, connectors, pinouts, display communication, and the final go/no-go checks that help DIY riders avoid wasted purchases.
Upgrading an electric dirt bike starts with compatibility checks, not the swap itself. A controller compatibility upgrade e-moto can look simple from the outside, but voltage, motor type, pinout, and communication protocol can still make a matching-looking part fail. Start with the bike’s electrical system, then verify the wiring and communication layer before you buy.
Start With the Controller and Motor Basics
The first step in how to verify controller compatibility when upgrading an e-moto is to identify the platform, not the replacement part. Match the battery voltage and motor type first, because that sets the baseline for every other check. The battery voltage and motor type first rule keeps you from chasing a controller that looks close but belongs to a different system.
Before you shop, collect these details:
- Battery voltage from the pack label or bike label
- Motor type, including whether the setup is sensored or sensorless
- Controller family or part number from the existing unit
- Wiring diagram, manual, or harness photo set
A clean connector shell does not prove the rest of the system matches. In practice, the label, harness, and manual tell you more than a product photo ever will. If those details are missing, treat the swap as conditional until you can verify them. That is also why a controller compatibility upgrade e-moto should begin with documentation, not guesswork.
Match Voltage, Current, and Motor Pairing
For most DIY upgraders, electrical fit is the point where a promising controller either stays on the shortlist or gets ruled out. Voltage range, current limit, and motor pairing need to be checked together, because a controller can be close on paper and still be a poor fit in the real bike.
| Check | Where to find it | What should match | Why it matters |
|---|---|---|---|
| Battery voltage | Pack label, bike label, manual | Controller voltage range should align with the battery system | A mismatch can stop the bike from powering correctly or create an unsafe setup |
| Current limit | Controller specs, seller sheet, tuning notes | Continuous and peak current should fit the motor and battery | Current that is too aggressive can overwork the system |
| Motor pairing | Motor label, controller family notes | Motor class should make sense for the controller’s intended load | The same controller family may not suit every motor build |
| Regen and phase settings | Programming notes, controller menu, seller docs | Confirm after the base electrical match | Tuning details matter later, not before the basic fit |
The practical split is simple: a 3000W-style upgrade often lives in a different load window than a 6000W-style build, so treat those paths as different scenarios rather than one universal rule. A current limit and motor pairing check is the safest way to keep the controller, battery, and motor aligned, while the high-power upgrade load context matters when you are comparing bigger trail-oriented setups.
If the exact numbers are not documented, stay conservative. A controller that claims broad compatibility still needs the battery voltage, motor type, and current envelope to line up with your bike. That is the difference between a plausible fit and a purchase you may have to return.
Verify Connectors, Pinouts, and Communications
This is where many controller compatibility upgrade e-moto searches go wrong. Connector shape alone is not proof of compatibility, because two plugs can look the same while the internal wiring is different. The pinout can differ even when plugs match, so treat the shell as a clue, not a verdict.
Use a short checklist before installation:
- Compare connector count and key shape against the wiring diagram
- Check wire colors, pin order, and harness labels
- Photograph both sides of every unplugged connector
- Confirm display, throttle, brake cut-off, and accessory lines together
The communication layer matters just as much as the plug. A controller and display need to share the same protocol, or the bike may power on without functioning normally. In other words, a lit screen is not the same thing as a working system. The display and controller protocol match is the point that often decides whether the swap runs cleanly or stalls during setup. For connector families and common wiring patterns, Ebike Connectors - Learn - Resources is useful background, but it should not replace the bike’s own diagram.
Run the Final Compatibility Checks

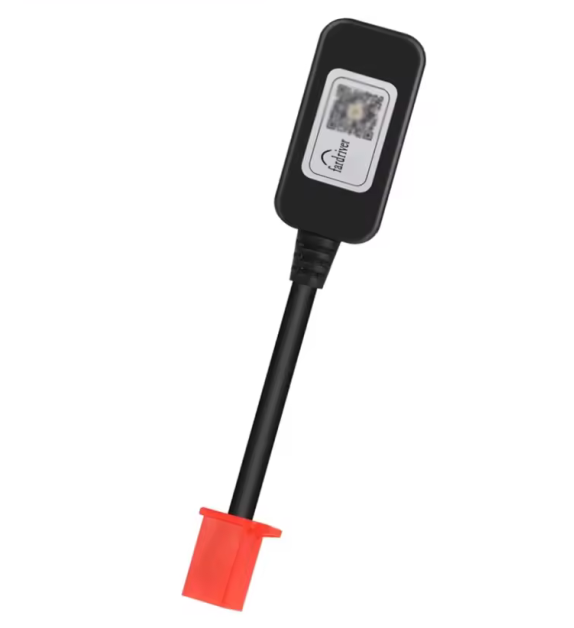

Before you install the new controller, do one last go/no-go pass. Recheck the controller label, the battery spec, and the harness notes. Then confirm that any programming or setup step matches the motor and battery instead of relying on factory defaults.
| Final check | Go signal | Stop signal |
|---|---|---|
| Labels and part numbers | Part numbers and voltage notes agree | A key label is missing or contradictory |
| Programming setup | The controller has documented tuning support | No setup notes or firmware guidance are available |
| Mounting and clearance | The unit fits without forcing cables | Cooling space or cable routing is tight |
| Accessory chain | Display, throttle, and brake cut-off are mapped | One signal path is unverified |
If the documentation is incomplete, pause. That is not a minor inconvenience; it is the clearest sign to request more specs before you spend money or start tearing down the bike. Our modular controller and battery checks and compatible replacement parts workflow are useful follow-ups when you are comparing a real swap rather than guessing from photos. If you want a broader setup refresher, DIY controller and display replacement is a practical next read.
What to Do If Specs Still Do Not Match
If the bike still does not line up cleanly, sort the outcome into three buckets: compatible with confidence, conditionally compatible with more documentation, or not worth the risk. The deciding factor is usually missing information, not a single dramatic failure point.
Save the controller label, wiring photos, and any programming notes before you ask for help. That gives the seller or support team a precise question instead of a vague “will this work?” If you still cannot confirm the wiring diagram, pinout, or protocol details, treat the part as a no-buy until the documentation improves. For readers comparing systems from the ground up, compatible replacement parts is the safer path than forcing a mismatch.
Final Takeaway
The safest way to verify controller compatibility is to check the system in layers: battery and motor first, then current limits, then pinout and protocol, then final fit and programming. If any layer is undocumented, stop and gather more specs before buying. If you want to keep moving, compare the labels, request the wiring details, or browse compatible parts with the exact controller family in mind. If you need help sorting a setup, we can review the details before you commit.
FAQs
How Do You Check Controller Compatibility for Upgrades?
Start with battery voltage and motor type, then verify connector pinout and display communication. If those basics line up, move to current limits and programming notes. The fastest way to rule out a bad fit is to compare labels, wiring photos, and the manual before you order anything.
What Information Do I Need Before Swapping an E-Moto Controller?
You need the controller part number, battery voltage, motor type, wiring diagram, connector photos, and any setup or programming notes. If even one of those is missing, the swap is still possible, but it is not a clean buy yet. The next step is to ask for the missing document before you commit.
Can an Aftermarket Controller Work With a Stock Electric Dirt Bike Motor?
Sometimes, yes, but only when the voltage range, current limits, motor type, and communication requirements all line up. The safe rule is to treat a matching plug as a starting clue, not proof. If the controller family or protocol is undocumented, the bike may need more confirmation before it will run correctly.
Why Does a Controller Power on but the Bike Still Not Run?
That usually points to a pinout error, a display protocol mismatch, a brake cut-off issue, or incomplete programming. A live screen means power is present, but it does not prove the control system is matched. The next verification step is to check the harness mapping and communication notes.
Can You Mix 3000W and 6000W Controller Setups?
Watt class alone does not decide fit. You still have to verify battery voltage, current limits, motor load, cooling space, and wiring capacity. When the build gets closer to 6000W-style loads, the controller and battery should be checked as a pair rather than as separate upgrades.
